WellGate 2504
4-line FXS SIP IP Gateway

Dual IP Stack : IPv6 and IPv4 Simultaneously
Support up to 4 SIP proxy Servers
Support different SIP Trunk to each FXS line
Auto HTTP Provision feature
Flexible Routes Plan and Dial Plan
Redundant Firmware Image

Introduction

Information

DataSheet

Documents

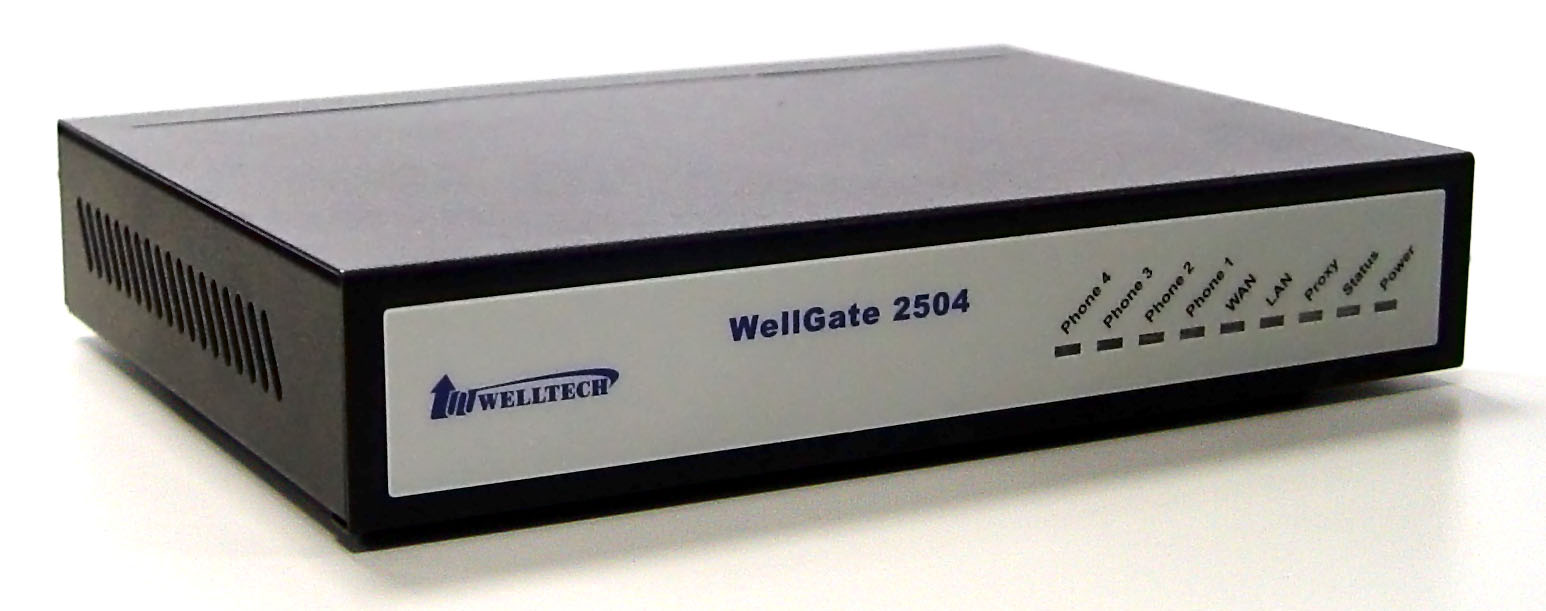

Product Image (high res)

WellGate 2504 is an 4-line FXS gateway with SIP protocol
IP device which allows to connect 4 sets of analog telephone sets to make or receive VoIP call over Internet or VPN network through Internet Telephony service provider. This device is suitable for office user through ITSP service provider to install at office or branch office to call between different offices. It also can install attrunk line in front of digital PBX to migrate digital PBX to IP Telephony call.

To select up to 4 SIP service Accounts

WellGate 2504 is appropriate to use four VoIP Service Providers, IP Centrex service and IP-PBX within offices and remote branch offices. One of four SIP Servers ( or ITSP Service provider or alternative IP-PBX ) can be configured freely at each line ( FXS port ) to make or receive IP Call. It provides 4 service platforms to select lowest rate according to your dial number or country.

IPv6 VoIP Gateway is ready to Market

IPv6 address was developed for years, however, it was not practical to our life up to date. More and more electronic devices are able to link to IP Network, this makes existing IPv4 address supply in shortage to global market. Meanwhile, the emerging countries are not able to increase IPv4 address supply due to strong market demand on broadband services. WellGate 2504 is an SIP based FXS gateway which built-in both IPv6 and IPv4 IP address. No matter when you are ready to deploy IPv6 network now, or reserve the future expansion to IPv6 from existing IPv4 address, WellGate 2504 is ready to grow up with you. Both IPv6 and IPv4 address are working simultaneously at Voice IP Call. Its flexibility of both IPv6 and IPv4 accept and interwork both
addresses on today and tomorrow whenever you need.

Flexible Dial plan and Route Plan Features

WellGate 2504 provides flexible Dial Plan from FXS to IP Trunk (SIP Softswitch). Dial Plan is to configure in what condition the digits can be sent out to IP network. The dial inter digit time before dialing is configurable to meet busy users or home user. Dial Rule is able to detect the prefix code and maximum digits reached and then dial automatically. The Digit Manipulation (DM) allows you to configure matched prefix code, digits length, start and stop digit position to be replaced digits as well.

Route Plan is to configure the incoming and outgoing call routes which you desired this call to go out or allow to income. For instance, IP incoming call may Ring to FXS port with Priority, Cyclic or Simultaneously ring . You can also configure IP incoming call by Matched prefix digits, Matched incoming FXS line number and Matched digit length. For FXS outgoing call routes, the hunting type supports Priority, Cyclic or Simultaneously ring and select which SIP trunk ( SIP Proxy Server ) to go. FXS outgoing call routes also support by Matched prefix digits, Matched incoming FXS line number and Matched digit length. Both direction supports No Answer time out and Backup Routes.

Suit to IP Telephony Service Provider

WellGate 2504 is a SIP IP device to connect with existing analog telephone set to make IP call. Its compact design and easy installation allow office user or single user to make or receive call just like an legend telephone call but less cost. It is compatible with broadband internet service device such as ADSL/Cable Modem and WiMax/3G Modem. It helps ISP provider to provide Telephony service to existing customer without additional cable.

Specification

Interface:
- Ethernet port (RJ-45, 10/100 base-T)
  - 1-WAN port, connect to IP Network
  - 1-LAN port connect to PC with NAT
- Support Bridge, NAT and Gateway mode
- Telephony port (RJ-11 x 4 pcs)
- DC +12V power input Jack
- Reset key to return Factory setting
- LED Indicator for System, SIP and FXS status
IP Network connection
- IPv4 (RFC 791) and IPv6 Simultaneously
- IPv6 Auto Configuration (RFC 4862)
- IPv6 Only, IPv4 Only or dual stack
- MAC Address (IEEE 802.3)
- MAC Clone Setting
- Vendor Class ID
- IP/ICMP/ARP/RARP/SNTP
- Static IP
- DHCP Client (RFC 2131), WAN port
- DHCP Server, LAN port
- NAT Server (RFC 1631)
- PPPoE Client
- DDNS ( DynDNS )
- DNS Client
- Firewall
- URL Filter
- IP Filter
- MAC Address Filter
- Application program Filter
- Port Filter
- Port Forwarding
- Bandwidth Control (Download and Upload), Maximum Bandwidth priority
  setting
- UPnP Server at LAN port
- Behind NAT, use DMZ for NAT traversal
- SNTP with time zone and Daylight Saving
- TCP/UDP (RFC 793/768)
- RTP/RTCP (RFC 1889/1890)
- IPV4 ICMP (RFC 792),
- TFTP Client
- VLAN Support 802.1Q, 802.1P
- VLAN ID Range : 2 to 4094
- VLAN Priority : 0 to 7
- QoS : DiffServ (RFC 2475), TOS (RFC791, 1394)
SIP Protocol :
- RFC3261 compliance
- Support up-to 4 SIP Server Register Accounts
- SIP UDP Protocol
- Support SIP compact Form
- Support SIP HOLD Type
- SIP Session Timer (RFC 4028)
- MD5 Digest Authentication (RFC2069/RFC2617)
- Reliability of provisional response PRACK (RFC3262)
- Early/Delay Media support
- Offer/Answer (RFC3265)
- Message Waiting Indication (RFC3842)
- Event Notification (RFC3265)
- REFER (RFC3515)
- Support Outbound Proxy
- Support Primary and Backup SIP Server
- Support STUN NAT Traversal
- Support “rport” parameter (RFC 3581)
Audio Codec :
- G.711 A-law/μ-law, G.729A, G.723.1 (6.3K, 5.3K)
- Select voice codec priority : Local or Remote
- Silence Suppression
- VAD/CNG
- LEC : Line Echo Canceller
- Max Echo Tail Length (G.168): 32, 64 and 128ms
- Packet Loss Compensation
- Automatic Gain Control
- In-band/out of band DTMF (RFC4733, RFC2833 / SIP INFO)
- Adaptive/Configurable Jitter Buffer
- G.168 Acoustic Echo Cancellation
- Phone Book ( 50 records ) for peer to peer calls
- Dialing Plan with drop, replace, Insert dialing digits
- Select First digit and Inter digit timeout duration (Sec)
- Selectable Call Progress Tone
- Support Specified Line Calling
Call Features :
- Caller ID display DTMF (before/after 1st ring) and FSK (before 1st ring ),
  ETSI and Bellcore
- DTMF Caller ID start and stop BIT configurable
- Polarity Reversal before Caller ID or not
- Tone Generation: Ring, Ring Back, Dial, Busy, call waiting, ROH, Warning,
  Holding, Stutter dial tone and disconnect tone
- Configure Tone Frequency, Cadence, Level and Cycle
- Global Country Based Tone Specification
- NAT Traversal support STUN, UPnP and Behind NAT
- Out-Band DTMF : RFC2833 and SIP Info
- Flash Time transmit via SIP Info (Enable or Disable)
- Message Waiting Indication (Stutter Tone Notice)
- Speed Dialing
- Call Waiting/Switching between Calls
- Call Forward (Busy, Unconditional, No Answer)
- Block Anonymous Call
- Call Hold
- Call Transfer
- Retrieve transfer call from 3rd party by dial Code (default: *#)
- Flexible Dial Plan
- Dial Rule : Prefix and Maximum digits, digit position to replace
- Digit Manipulation (Drop and Replace Rule)
- Extension Hunting
- Hot Line
- Support SIP Trunk up 4 SIP Servers
- Outgoing SIP Caller ID Selection
- Accept desired SIP Proxy incoming calls Only
- Flexible Routing Plan
  - Prefix Match and Length
  - Priority Ring
  - Cyclic Ring
  - Simultaneous Ring
  - Programmable Hunting Cycle
  - Backup Routing with Digit Manipulation
  - Default Routing
- T.38 FAX
- Support Peer to Peer Dialing
- Flash Time Detection: range from 80 to 800 ms
- ON-HOOK Voltage -48Vdc
- Configure Ring Cadence, Frequency and Voltage
- Support Polarity reversal for Billing
- Service Up to 1 Kilo-meter distance to analog telephone set
- Generate Current Drop Time (Open Loop Disconnect time)
MANAGEMENT :
- Administrative Telnet CLI and HTTP, HTTPS
- http provision through MAC address
- Multilingual Web User Interface
- 3 Levels of User Access Right with Password protection (Administrator,
  Supervisor and User)
- HTTP/HTTPS Service Access limitation from WAN port
- Provides System Status Logs
- Status display: Network, Line, SIP Trunk status
- Diagnostics (debug through Syslog Event Notice)
- Debug in real time by Telnet
- Auto Provision via HTTP Server
- Support SNMP V2/Trap
- Configuration Backup/Restore
- Dual Firmware Image Backup
- Reset to factory Default
** Support Welltech proprietary encryption protocol at SIP Signal and Voice codec
during transmitting to IP network in order to Anti-ISP block of VoIP call. This
feature only be available with Welltech SIP server or SIPPBX6200 IP-PBX
Environmental :
- Dimension: 17.5(W) × 3.2(H) × 12.6(D) CM
- Weight: 0.9kg (One unit with packing)
- Operating Temp. & Humidity
  - Temp.: 0°C~45°C (32°F~113°F)
  - Humidity: 10%~90% relative humidity, non-condensing
- Power Adaptor:
  - INPUT: AC100V~240V, 50/60Hz
  - OUTPUT: DC 12V, 1.5A
  - Power Consumption: 15 Watts.
Approvals:
- CE, FCC (Part 15, Class B), LVD and RoHS
Country of origin:
- Made in Taiwan
Packing Accessories
- WellGate 2504 x 1 pcs
- AC to DC+12V Power adaptor x 1 pcs
- CD User Manual x 1 pcs
Warranty
- One year

Comparison Table between WellGate 3504A and WellGate 2504

	WellGate 2504	WellGate 3504A
IPv6	YES	NO
SIP	YES	YES
H.323	NO	YES
NAT for WAN/LAN	YES	NO
Routes and Dial Plans	YES	NO
Rich Telephony Features	YES	NO
Enclosure	Plastic	Metal
