WellGate 3512
WiFi無線網關
  • Broadband Router with WiFi and VoIP to provide Triple Play Service
  • Unique VLAN ID for Voice, Internet and IP-TV services simultaneously
  • Built-in 2 lines FXS VoIP gateway
  • Wi-Fi 802.11 b/g AP mode
  • Wi-Fi 802.11 b/g client mode
  • WDS Repeater mode
  • Universal repeater mode

產品簡介
相關資訊
文件
軟體

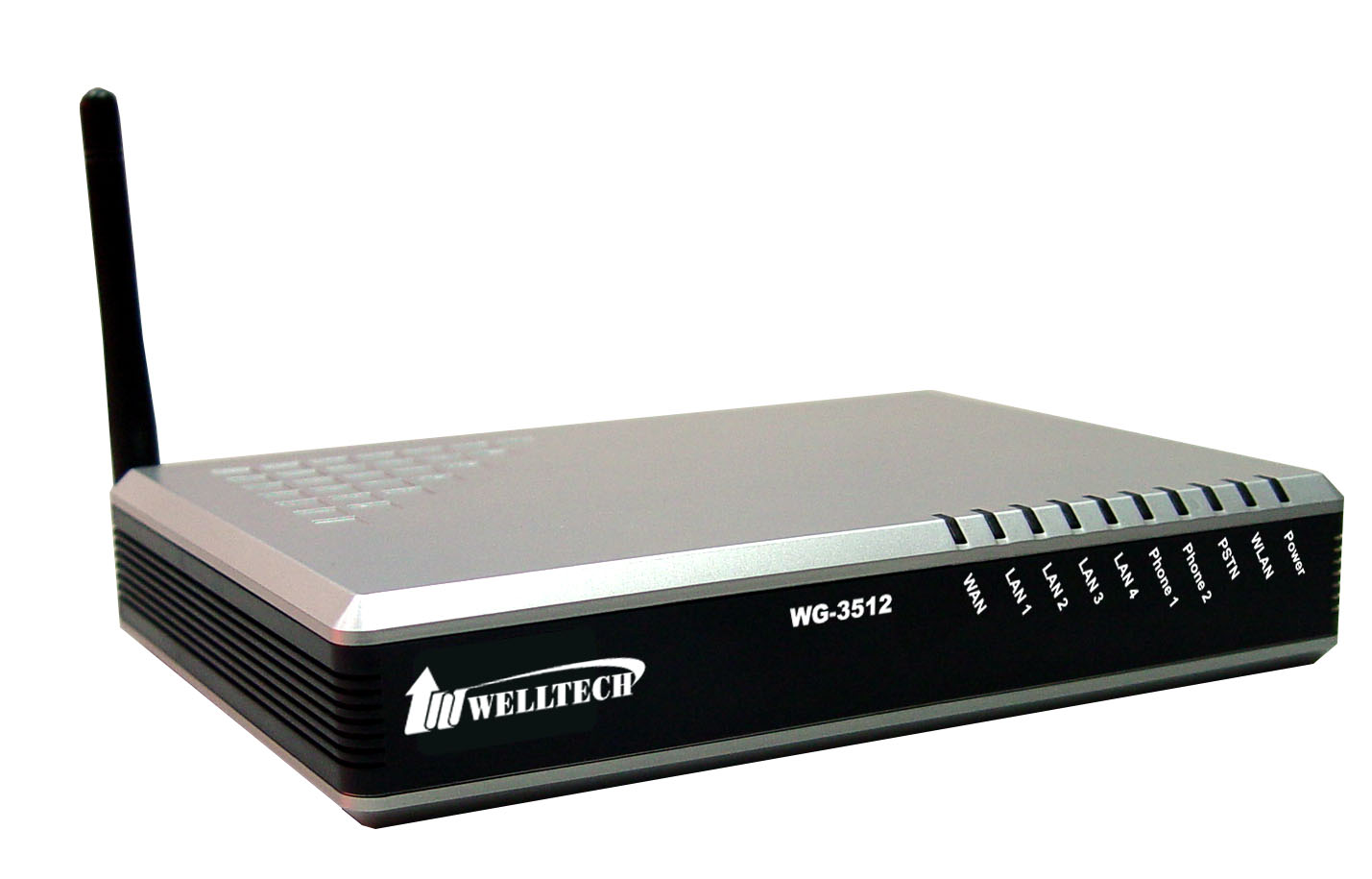

產品照片 (high res)

WellGate 3512 is a Wi-Fi VoIP Gateway, which built-in 2-port FXS VoIP ATA, 1-WAN/4-LAN router IP Gateway, and 802.11 b/g WLAN together. It supports SIPv2 (RFC3261) protocol and with rich telephony features. Wireless LAN can be configured to either Access Point (WiFi AP) or Client mode, with automatically site scan and access control by MAC address. It supports WDS and Universal Repeater to connect different wireless network together.

產品優勢

Suitable for Triple Play Services ( Voice, internet and Video entertainment, IP TV ) as Home Gateway Built-in WiFi AP, WiFi Client, IP Voice Gateway, dedicated for Enterprise, SOHO, Home user. Support both WDS and Universal Repeater, connect to different wireless network easily. Connect to a variety of ISP’s wireless network easily. Support diverse networking connection of ADSL/Cable modem, 3G/WiMax Modem and FTTH GEPON/GPON. Multiple VPN protocol pass-through, to integrate with existing VPN network. Flexible Dial Plan for VoIP and Wireless call. Security protected by Firewall and Denial of Service (DoS). Voice packet (2 lines FXS) has higher priority than other ports via VLAN ID configuration.

Configurations
  • Configure & Update method: Web Browser (HTTP)
  • Access password setting and change
  • IVR announcement of IP address
  • System Status indication
  • System Statistic
  • Save / Reload Setting parameter
  • System Log Saving locally and remotely
  • Date & Time setting

應用範例

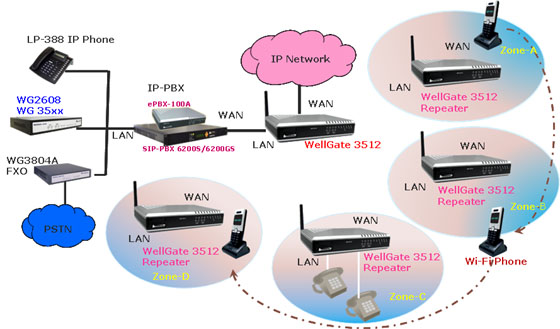

Triple Play with VLAN ID network application as Home Gateway.

規格
  • Hardware Interface
    • Ethernet Port (RJ-45, 10/100 base-)
      • 1-WAN port connect to ADSL/Cable modem or Fiber line.
      • 4-LAN port connect to PC or other Network devices.
    • Telephone Line (RJ-11)
      • 2-FXS port connect to analog  phone set (POTS)
    • RF Antenna Connector
    • Power connector:  DC12V, 1.5A
    • Reset Key (Back to factory default setting)
    • Status indicated LED: WAN, LAN, FXS, WLAN and power status
  • IP Network Connection
    • Broadband Router (IP Gateway)
      • IPv4 (RFC 791)
      • MAC Address (IEEE 802.3)
      • Static IP
      • DHCP Client (RFC 2131)
      • DHCP Server (RFC 2131)
      • PPPoE Client (RFC 2516)
      • NTP Server
      • DNS Client
      • DNS Relay
      • Dynamic DNS (DDNS)
      • NAT/NAPT (RFC 1631)
      • TCP/UDP (RFC 793/768)
      • RTP/RTCP (RFC 1889/1890)
      • IPv4 ICMP (RFC 792)
      • ARP (RF826)
      • TFTP Client
      • HTTP Server
      • Virtual DMZ
      • Firewall
      • IP Filtering
      • Port Filtering
      • MAC Filtering
      • URL Filtering
      • Port Forwarding
      • DoS: Denial of Service
    • Bridge Mode:
      • VPN Pass-Through: IPSec, PPTP, L2TP
      • NAT Traversal
      • UPnP IGD
      • STUN Client
      • SNTP Client (RFC 2030)
      • HTTP Server
      • Quality of Service
      • 802.1Q VLAN Tag DiffServ (RFC 2475)
  • Wireless LAN
    • Standard: Comply IEEE 802.11 b/g
    • Frequency: 2.4GHz (B) / 2.4GHz (G) / 2.4GHz (B+G)
    • Mode
      • WiFi AP mode
      • WiFi client mode
      • WDS repeater mode
      • WiFi AP+WDS repeater mode
      • Universal Repeater Mode
    • SSID / Broadcast SSID
    • Channel: Ch 1 ~ 11, 13 for Europe (ETSI), 14 for Japan
    • Authentication Type: Open System / Shared Key
    • Data Rate: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54M
    • Wireless ISP: Bridged WAN and LAN together, WiFi Client connect to ISP's AP
    • 802.1x Encryption and Authentication
    • Encryption: WEP (64/128bits), WPA/WPA2-TKIP/AES2
    • Mixed WPA and WPA
    • WPA Authentication: PSK: Pre-Shared Key (Personal) / Radius (Enterprise)
    • Wireless Access Control by MAC address (Allow/Deny)
    • 802.11f, IAPP (Inter Access Point Protocol)
    • Support Network type: Infrastructure and Ad-Hoc mode
    • Support Site survey scan and Manual connect Up-to 8 WDS AP List
  • IP Telephony
    • SIPv2 (RFC 3261)
    • Outbound proxy sets to increase performance, productivity and security.
  • Voice Codec
    • G.711 (a-Law/u-Law): 64 bits (PCM)
    • G.723.1: 6.3k/5.3k bits
    • G.726: G.726: 16/24/32/40K bits (ADPCM)
    • G.729A: 8k bits (CS-SCELP)
    • G.729B: adds VAD and CNG to G.729G
    • VAD –Voice Activity Detection with Silence Suppression
    • CNG  – Comfortable Noise Generation
    • Voice Gain Adjustable
    • Automatic Gain Control
    • Line Echo Cancelation
    • Adaptive Jitter Buffer
    • Packet Loss compensation - increasing voice quality
    • DTMF: In-band, Out-of-band (RFC 2833), and SIP Info
    • Caller ID
      • Caller ID Generation DTMF, FSK (Bellcore, ETSI, BT, NTT)
      • Call Waiting Caller ID
      • Short Ring / Dual Tone before Caller ID
    • FAX Transmission:
      • Tone Detection
      • G.711 Pass-Through
    • T.38 Fax relay protocol
    • Modem Transmission
      • Tone Detection
      • G.711 Pass-Through
    • Tone Generation (up to 13 countries localized tone selectable)
    • Ring Tone
    • Ring Back tone
    • Dial Tone
    • Programming Tone
    • Customized Ring Cadence
  • Call Features
    • Call Hold
    • Call Transfer (Blind)
    • Call Forward (Unconditional, No response or Busy)
    • Call Conference (3-ways)
    • DND (Do Not Disturb)
    • Dial number Plan
    • Proxy Routing Call
    • Direct IP Call
    • Routed to remote PSTN Phone
    • Speed Dial
    • Hot Line
    • Prefix code, insert/drop
  • Security
    • 802.1x Wireless Encryption and Authentication
    • Build-in Firewall / Denial of Service
    • MD5 for SIP authentication (RFC 2069 / 2617) Password protected Admin access authority
  • Country of origin
    • Made in Taiwan
  • Environmental
    • Dimension (W*H*D): 175 x 32 x 126 mm ( without packing )
    • Weight : 0.6 kgm (with single packing)
    • Operating Temp. & Humidity
    • Temp.: 0°C~45°C (32°F~113°F) Humidity: 10%~90% relative humidity, non-condensing
  • AC Power Input
    • Input : AC100V~240V, 50-60Hz
    • Output : DC 12V, 1.5A
    • Regulatory: FCC (Part 15, Class B) & CE Processing
