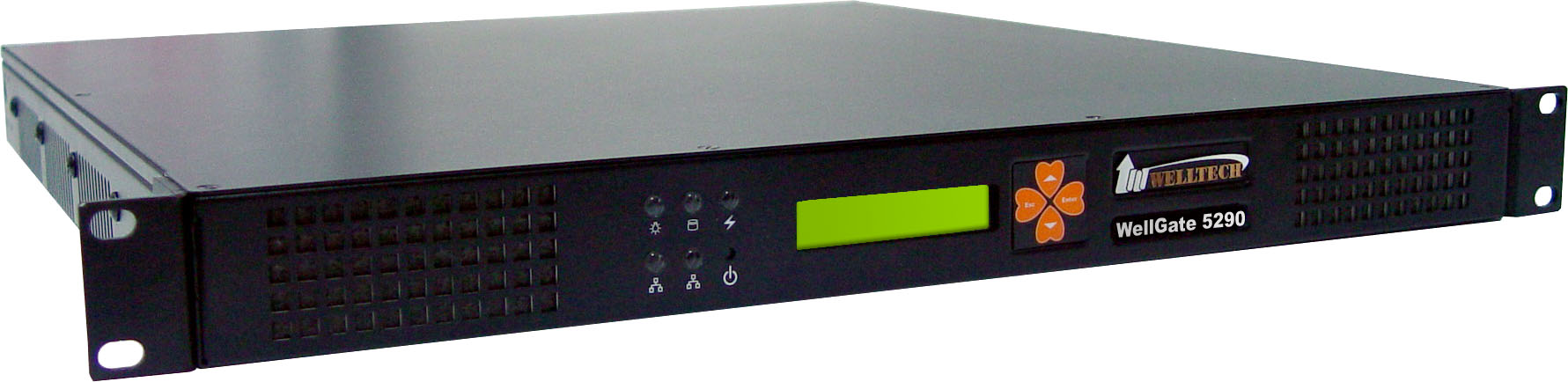

WellGate 5290
A Universal VOIP/SS7 Gateway
  • Navigate Call Freely in SIP, H.323 and PSTN
  • Up to 4 Programmable E1/T1 Trunks
  • Support Audio Codec G.711, G.723.1, G.729A, GSM
  • Support up-to 16 Multiple SIP Proxy Servers
  • Built-in PSTN and VOIP IVR
  • Dynamic Call Treatment Based on Drag and Drop Call Flow Editor
  • Full Web Management Interface

產品簡介
相關資訊
文件
軟體
產品照片 (high res)

WellGate 5290 is a universal VOIP/SS7 GATEWAY which navigates the calls in between H.323, SIP and PSTN freely, not simple PSTN to VOIP calls or vice verse. It can be easily used to implement SIP and PSTN, H.323 and PSTN, SIP and H.323, SIP and SIP, H.323 and H.323 calls simultaneously. With built-in SS7/ISUP interface, WellGate 5290 bridges traditional PSTN/SS7 to VOIP network. Also it provides PSTN/VOIP IVR helps service provider to create their own voice service very quick.

WellGate 5290 provides an easy to use web-based managing interface. Administrator can use the web based drag and drop call-flow editor to design their VOIP service very quick and without losing any flexibilities. A web-based voice prompt management GUI is also provided to simplify the deployment of IVR related service.

WG5290 support single OPC (source point code) and up to 4 links connection to different telecom.

PS: SS7 and Voice must be separated to different E1 port.
It provides 4 E1 ports for SS7 link and 4 E1 port for Voice

Key Features
  • Navigate Call Freely in SIP, H.323 and PSTN
  • Support SIP RFC 3261 and ITU-T H.323 V5 Simultaneously
  • Up to 4 Programmable E1/T1 Trunks
  • PSTN Signaling: ISDN/PRI, CAS, MFC R2, QSIG, SS7/ISUP
  • Support with Voice or Signal only SS7 Link
  • Support Audio Codec G.711, G.723.1, G.729A, GSM
  • SIP to PSTN Call and vice versa
  • H.323 to PSTN Call and vice versa
  • H.323 to SIP Call and vice versa
  • SIP to SIP Call
  • H.323 to H.323 Call
  • Built-in Universal VOIP Address Book
  • Support up-to 16 Multiple SIP Proxy Servers
  • Support SIP Proxy, Gatekeeper and P2P Calls Simultaneously
  • Support Early Media and SIP Delay Media
  • Support RADIUS Authentication, Authorization and Accounting
  • Intelligent PSTN Call Routing and in-Trunk Hunting
  • Support Flexible VOIP Routing and Account Code
  • Flexible Digit Manipulation Plan
  • Support Calling/Called Number Replacement
  • In-band and out of Band DTMF Transmission
  • T.38 Fax Relay up to 14400 bps
  • Dynamic Call Treatment Based on Drag and Drop Call Flow Editor
  • Built-in PSTN and VOIP IVR
  • Provides Call Detail Record
  • Full Web Management Interface

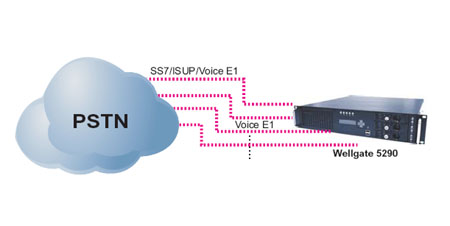

Application Example
