WP589
WiFi SIP IP Phone

  • Comply with IEEE 802.11 b/g WiFi client mode
  • Comply with SIP RFC3261 and any SIP Server, IPPBX
  • Color LCD display with 160 hrs standby time
  • Roaming among WiFi AP(Continue when Talking)
  • Bilingual Display : English and Chinese
  • Color : Black

Introduction

Information
DataSheet
Documents
Product Image (high res)

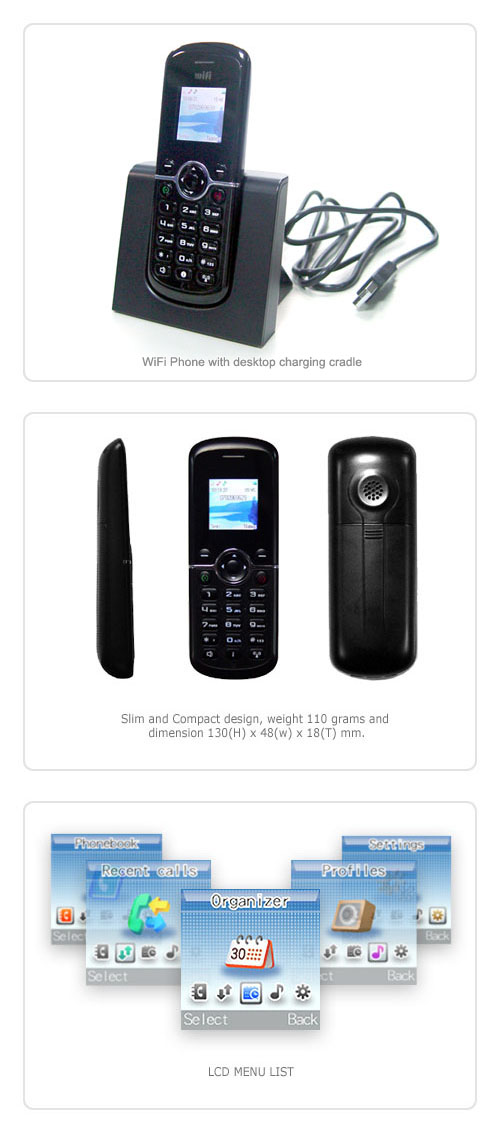

WP589 is a WiFi client handheld SIP IP phone with color LCD display and Slim, Compact design. It links to IP network through WiFi AP which complies with IEEE 802.11 b/g standard. It is suitable for Internet Telephony Service provider, Office IP-PBX or home use Wireless phone.

Slim and Stylish IP Phone

WP589 is an SIP based IP Phone built-in WiFi b/g client mode to connect to IP network. It is easy to carry and convenience to call or answer once it was connected to WiFi AP no matter where you are. It looks like a Mobile phone, however, it definitely an WiFi Phone.

Office IP-PBX Wireless Extension

Since WP589 is an SIP based IP Phone, it has to register to IP-PBX or ITSP Service provider platform. In office application, WP589 is an IP-PBX extension and you can carry with you like a mobile phone to make or receive a call no matter this call is via IP to IP or to PSTN land line. You don’t miss any call when you link to WiFi and IP-PBX.

Rich Telephony Features

WP589 supports rich telephony features. The feature is similar to mobile phone and provide user friendly Icon to guide you to use it without reading user manual.

Cordless Phone

WP589 is also used as home cordless Phone. Most family has ADSL or Cable Modem with WiFi b/g AP. WP589 can link to this AP together with your PC, Notebook which access to internet at the same time. ITSP Service Provider provide a VoIP number to this WiFi phone and you can regard this phone as legend cordless phone but lower calling rate from ITSP Provider.

Specification

  • Hardware Interface
    • Microphone: 4.0mm (Φ) x 1.5mm, sensitivity: -42dB
    • Receiver: 32Ω, rated sine power: 10mW
    • Speaker: 8Ω, rated sine power: 0.5W
    • Navigation Keys
    • Vibrator : Support
    • I/O Connector: Standard 5pin mini USB
    • Charge mode: CC mode, CV mode, recharge mode
    • USB Charging : Support
    • Battery Capacity : 1000 mAh
    • Charging time : 3 hrs
    • Standby Time : 160 hrs
    • Talk Time : 6 hrs
    • Power Adaptor:
      • INPUT: AC100V~240V, 50/60Hz
      • OUTPUT: DC 5V, 0.5A
    • LCD Display:
      • View Size: 1.44-inch
      • LCD Type: 65K CSTN,
      • Resolution: 128 x 128 pixels
      • Language : Both English and Chinese
  • Wireless Specification
    • Internal Antenna
    • Operation Mode : IEEE 802.11b/g client
    • Transmit Power :
      • IEEE 802.11b: typical 15dBm, maximum 17dBm
      • IEEE 802.11g: typical 12dBm, maximum 15dBm
    • Receive Sensitivity :
      • IEEE 802.11b (11M): -83dBm
      • IEEE 802.11g (54M): -68dBm
    • WiFi Security : WEP 64, WEP 128, WPA-PSK, WPA2-PSK (TKIP and AES)
    • Wireless Features: Layer 2 intelligent roaming algorithm, WMM / WMM-PS
  • IP Network connection
    • IPv4 (RFC 791)
    • MAC Address (IEEE 802.3)
    • Static IP
    • DHCP Client (RFC 2131)
    • DNS Client
    • NTP Server
    • TCP/UDP (RFC 793/768)
    • RTP/RTCP (RFC 1889/1890)
    • IPV4 ICMP (RFC 792)
  • SIP Protocol
    • RFC3261 compliance
    • Support up-to 2 SIP Register Accounts
    • SIP UDP Protocol
    • MD5 Digest Authentication
    • Message Waiting Indication (RFC3842)
    • Support DNS SRV to locate SIP Server (RFC 3263)
  • Audio Codec
    • G.711 A-law/μ-law, G.729
    • Silence Suppression
    • VAD/CNG
    • Automatic Gain Control
    • In-band/out of band DTMF (RFC 4733 (RFC 2833)/SIP INFO)
    • Adaptive/Configurable Jitter Buffer
    • Acoustic Echo Cancellation
    • Volume Adjustment
  • Call Features
    • Call history:
    • Dialed call, Missed call, Received call, Call duration
    • Call Hold
    • Call Mute
    • Call Transfer
    • Call waiting
    • Call Forward
    • Speaker Phone Mode
    • Phone Book: 200 records, support speed dial and group
    • Phone Profile : 5 sets
    • Ring Tone: Support 64-Chords polyphonic MIDI and MP3
    • Caller ID display
    • Speed Dialing
    • Call Waiting/Switching between Calls
  • Others
    • Wallpaper: Support JPEG and BMP format
    • Icon indicators: WLAN status, SIP server status, battery level
    • Organizer: Alarm, calendar, world clock, calculator
    • My phone info.: Phone number, firmware version, MAC address
    • Flight Mode
    • Vibration Mode
    • Auto Keypad Lock
    • Reset to Default
  • Environmental
    • Dimension: 130(H) × 48(W) × 18(T) mm
    • Weight: 0.4 kg (One unit with packing)
    • Operating Temp. & Humidity
      • Temp.: 0°C~45°C (32°F~113°F)
      • Humidity: 10%~90% relative humidity, non-condensing
  • Approvals
    • CE, FCC, LVD and RoHS
  • Country of origin
    • Made in Taiwan
  • Packing Accessories
    • WP589 WiFi Phone x 1 pcs
    • AC to DC 5V Power adaptor x 1 pcs
    • USB Cable x 1 pcs
    • Battery 1000mAh x 1 pcs (NOKIA Compatile Li Battery)
    • CD User Manual
  • Warranty
    • One year
