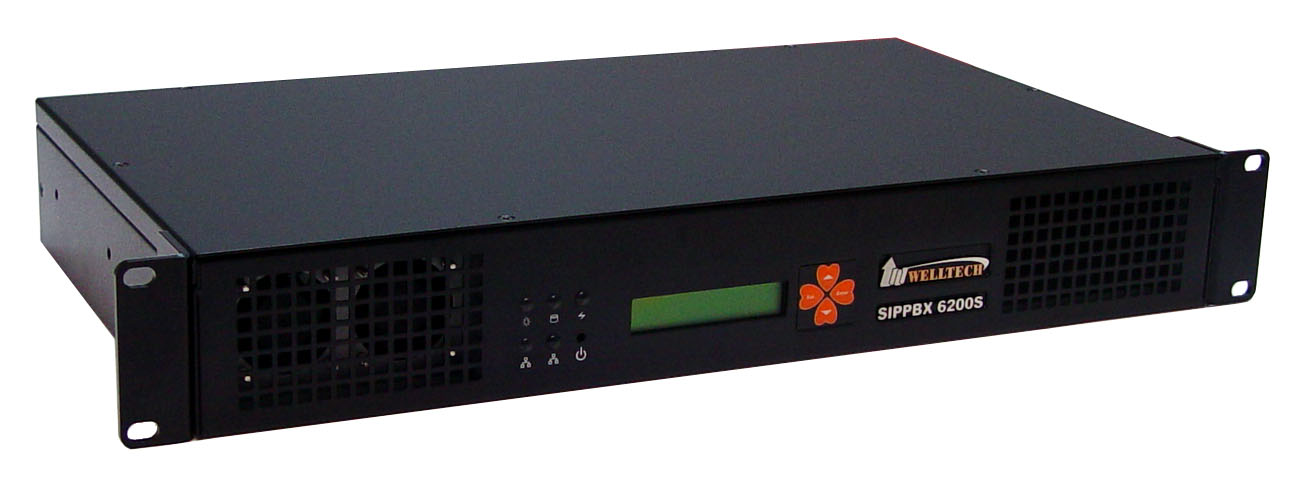

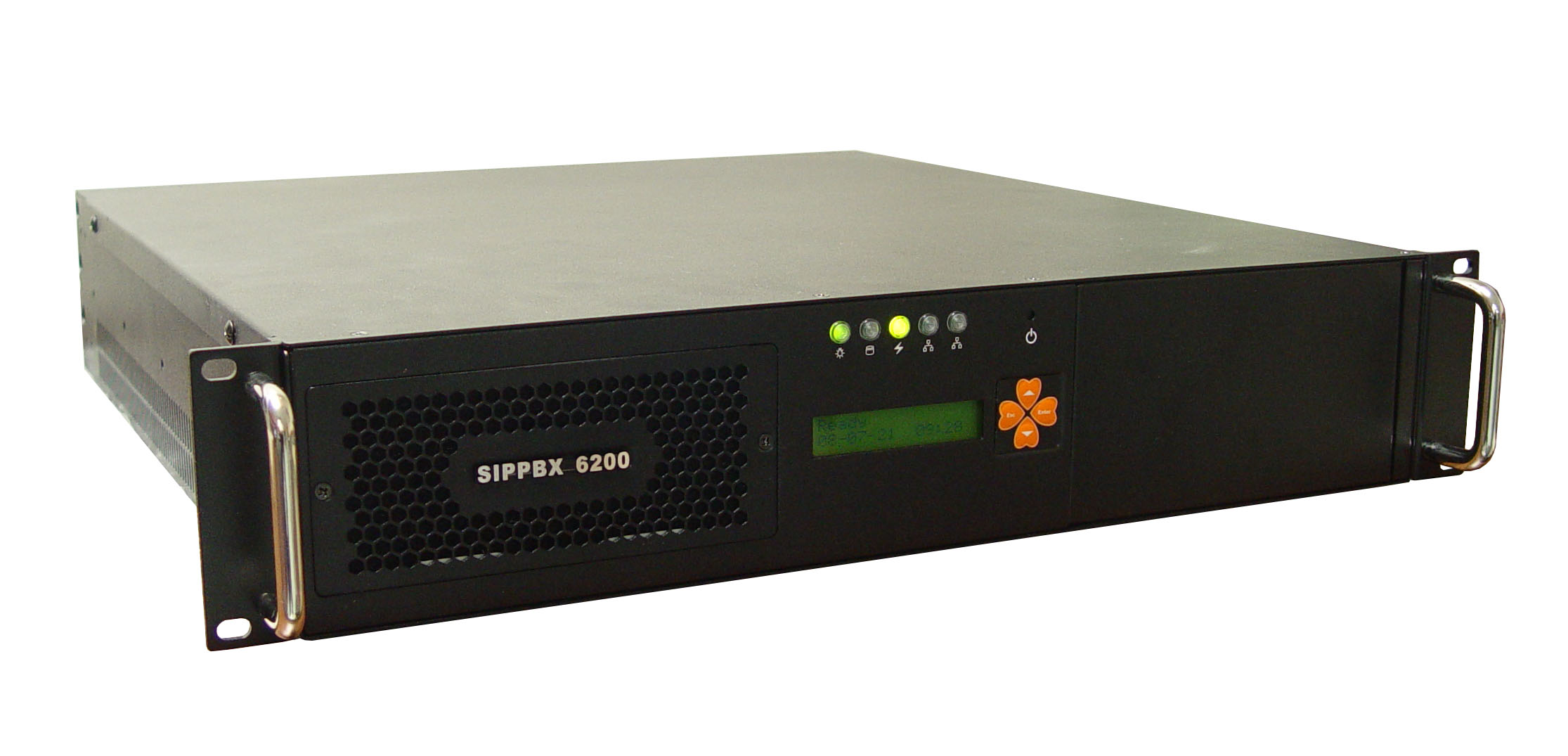

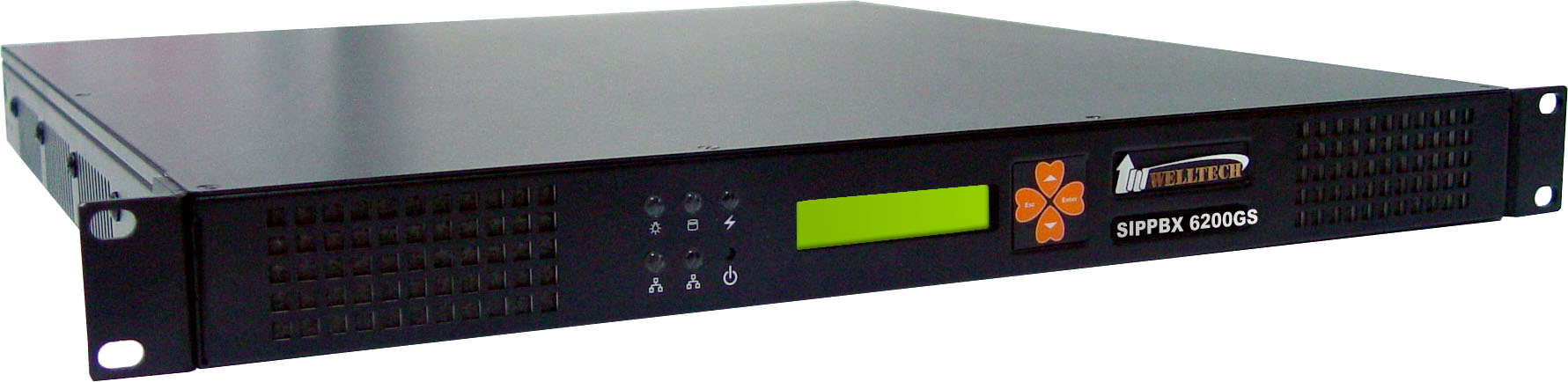

SIPPBX 6200S, 6200GS, 6200N
SIP based IP-PBX

Introduction

SIPPBX 6200x is a series of SIP based IP-PBX which are SIPPBX 6200S, 6200GS and 6200N. They support different maximum extensions based on different hardware platform. It was built-in standard and high efficient SIP Stack and is compatible with SIP IP Phone and gateway. It is reliable and user friendly to use as regular IP Telephony Service device. SIPPBX 6200x is ready to provide office telephony service. Simply use Web Browser to Login SIPPBX 6200x and enable your desire features and functions by following Wizard guide and it is ready to use immediately.

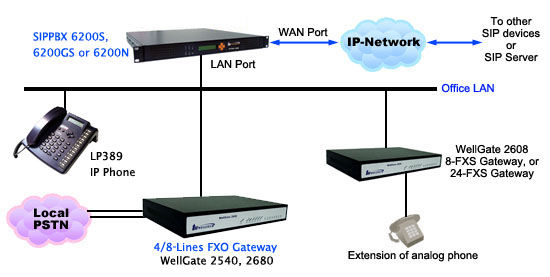

Typical IP-PBX application

FAX incoming call to Email address

SIPPBX 6200x converts FAX incoming call to PDF format file and Email to desire several Email addresses with attached PDF file for storage and forward. By installing an FXO gateway and enable T.38 FAX feature, an PSTN incoming FAX call was forwarded to engine of FAX server inside SIPPBX 6200x. No more useless incoming FAX to exhaust your FAX machine paper.

CDR, Call Detail Record

SIPPBX6200x generates Call Detail Record (CDR) file in real time to store inside or send to external desire IP address with SYSLOG Server for advanced processing. With this feature, SIPPBX 6200x is suitable for enterprise office department billing or Hotel PBX Billing to each guest room. The raw CDR file is easy to be used for advanced billing program which are ready in market.

HQ and Branch office communication

SIPPBX6200x can be installed at HQ and install IP Phone or FXS gateway at remote Branch/Field office. Via the Internet IP link, Extensions of HQ and remote office extension can talk without any cost. Or, both offices install two IP-PBX separately, both IP-PBX can link together and call each other via internet for free.

Specification

• Interface:
  • Ethernet ports (RJ-45, 10/100/1000 Base-T)
    • 1-WAN port, for connecting to Internet
    • 1-LAN port for connecting to Private Network
  • AC power Line input outlet
• IP Protocol:
  • SIP RFC 3261 Compliance with high efficient stack
  • Support IPv4 (RFC791)
  • LAN port: Support Fixed IP with VLAN
  • WAN port: Fixed IP address
• Auto Attendant(AA):
  • Web-Base Auto Attendant Flow Editor
  • Scheduled Special Announcement
  • Holidays and Working Time Support
  • Multiple Language Support
  • Support Branch Office
  • Support Transit Call (PSTN incoming call transit to another PSTN call)
  • Service Setting IVR guidance.
  • Service Setting Announcement service.
  • Support Personal Greeting Recording through Telephone Set for Multilingual.
• IVR:
  • Web-Base Service Setting Flow Editor
  • Multiple Language Support
  • Native TTS (Chinese & English & Japanese) Support
  • Access Key Setting Result Announcement
  • Support diverse Branch offices Greeting
  • Build System Prompt(Greeting) file via extension Phone set
• Voice Mail:
  • Web-Base Voice Mail Flow Editor
  • Personal Greeting
  • Multiple Language Support (Chinese & English & Japanese)
  • Text To Speech (TTS) (Chinese & English & Japanese) Support
  • Message Waiting Indication (MWI)
  • Email Notify
  • Web Retrieve
  • Phone Retrieve
• Conference Bridge:
  • Support RFC 4579 (without XML)
  • Ad-Hoc Conference
  • Virtual Conference (Meeting Me)
  • Virtual Conference (Ad-hoc)
  • Event Tone Notice
  • Up-to 8 parties in one room
  • Programmable Conference bill charge to host
• Enhanced Service:
  • System Announcement Service
  • Company-wide Coloring Ring Back Tone Service
  • Provided Server Hold Tone
  • Transit Call charge to Initiator
• FAX Service:
  • Support T.38/UDPTL/ECM
  • Support Personal/Common Fax Account
  • PDF Format Storage and Retrieve through Web
  • FAX to Email Notice
• Telephony PBX features:
  • Call Transfer
  • Call Forward
  • Call Forwarded Notice
  • Call Screening (Call Restriction)
  • Caller ID Privacy
  • Call Waiting
  • Call Hold
  • Call Pickup (Global, Group)
  • Specified Call Pickup
  • Find Me
  • Short Code Dialing
  • Do Not Disturb (DND)
  • Missed Call Notify by Email
  • ANI Replacement (Calling Number)
  • Call Return
  • Hide ANI/Show ANI Selection
  • Call Park/Retrieve
  • Call Camp on
  • Display Name Replacement
  • PSTN Number (Caller ID number replacement)
  • Ring PSTN & IP Device Simultaneously
  • Broadcasting Service
  • Wake-Up Call
  • Reject Anonymous Call
  • Busy Lamp Filed (RFC 4235)
• Toll Restriction:
  • Support Allow/Disallow/Allow in Duration Call Restriction
  • Support Restriction Engaged Time (per 30 minutes)
  • Provided Office/Extension Level Toll Restriction Service
  • Call Restriction (Black/White List, Talk time, personnel base and flexible time)
• Audio/Video Codecs:
  • G.711 A-law and μ-law
  • G.729A
  • G.723
  • GSM 6.10 (full rate)
  • H.263/H.264 Video Codec Pass-Thru
  • MPEG4 Pass-Thru
• Others
  • Subscribers install behind NAT support.
  • Subscribers NAT Traversal
  • Two units Redundant hot swap support
  • Voice calls recording with external IP Recorder 5600
  • Work as RADIUS Server with AAA protocol
  • One extension number can be used for 3 IP devices.
  • Store CDR inside or send to external SYSLOG Server
  • Built-in CDR Report
  • Support VLAN and QoS (SIPPBX 6200S and 6200GS only)
• MANAGEMENT:
  • Webpage configuration wizard to reduce difficulty to start
  • Multiple Language Support (English and Chinese)
  • Management: Web Browser Management
  • HTTP Firmware Upgrade
  • Export/Import Configuration
  • NTP time setting with time zone
  • SMTP Server and Email address setting
  • HTTP access to WAN port number and enable/disable
  • Telnet access to WAN port number and enable/disable
  • Ping WAN port enable/disable
  • Web Browser Firmware Upload
  • Web Browser Hold Tone, Ring Back Tone Upload
  • Configuration Backup/Restore
  • Import Setting: Configuration, IVR Package, IVR WAV File
  • Export Setting: Configuration and IVR Package
  • Web Browser RESET to Default
  • Web Browser Reboot System
  • Web Browser POWER OFF System remotely
  • Display System Firmware and Library information
  • Subscribers Status Display
  • On-Line Call Monitor
• Environmental:
  • Operating Temp. & Humidity
    • Temp.: 0°C~45°C (32°F~113°F)
    • Humidity: 10%~90% relative humidity, non-condensing
  • AC Power Line: AC100V~240V, 50/60Hz
• Approvals:
  • CE, FCC, LVD and RoHS
• Country of origin:
  • Made in Taiwan
• Packing Accessories
  • SIPPBX 6200x x 1 unit
  • AC Power Cable x 1 pcs
  • Rack Mount bracket x 2 pcs
  • CD User Manual
• Warranty:
  • One year

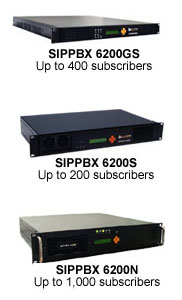

System Capacity of each model.
