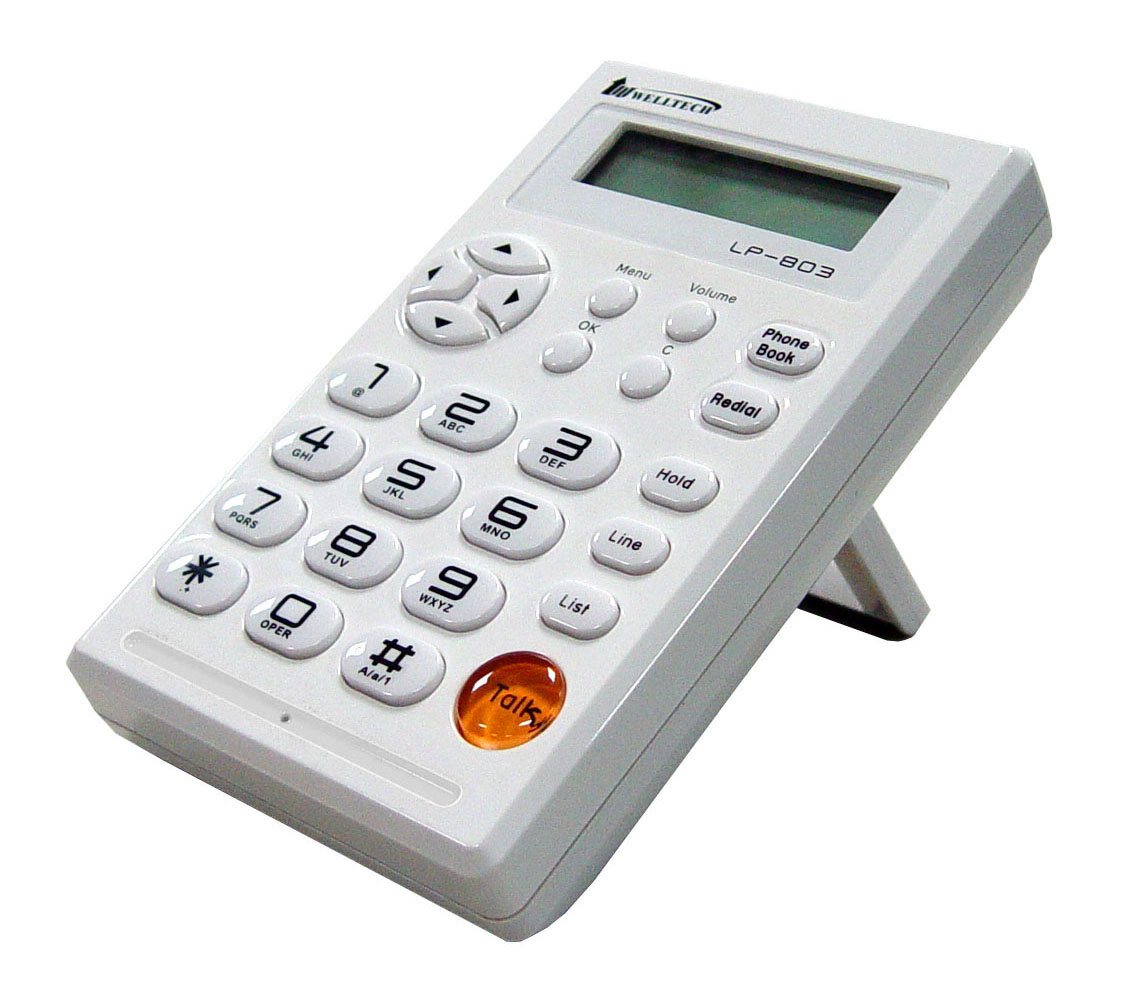

LP-803
Portable SIP IP Phone
  • Support up to 3 Register Accounts at three SIP Servers
  • Portable IP Phone for Office, Home, Traveler and Door phone.
  • Excellent Loud Speaker Phone
  • Auto Provision feature

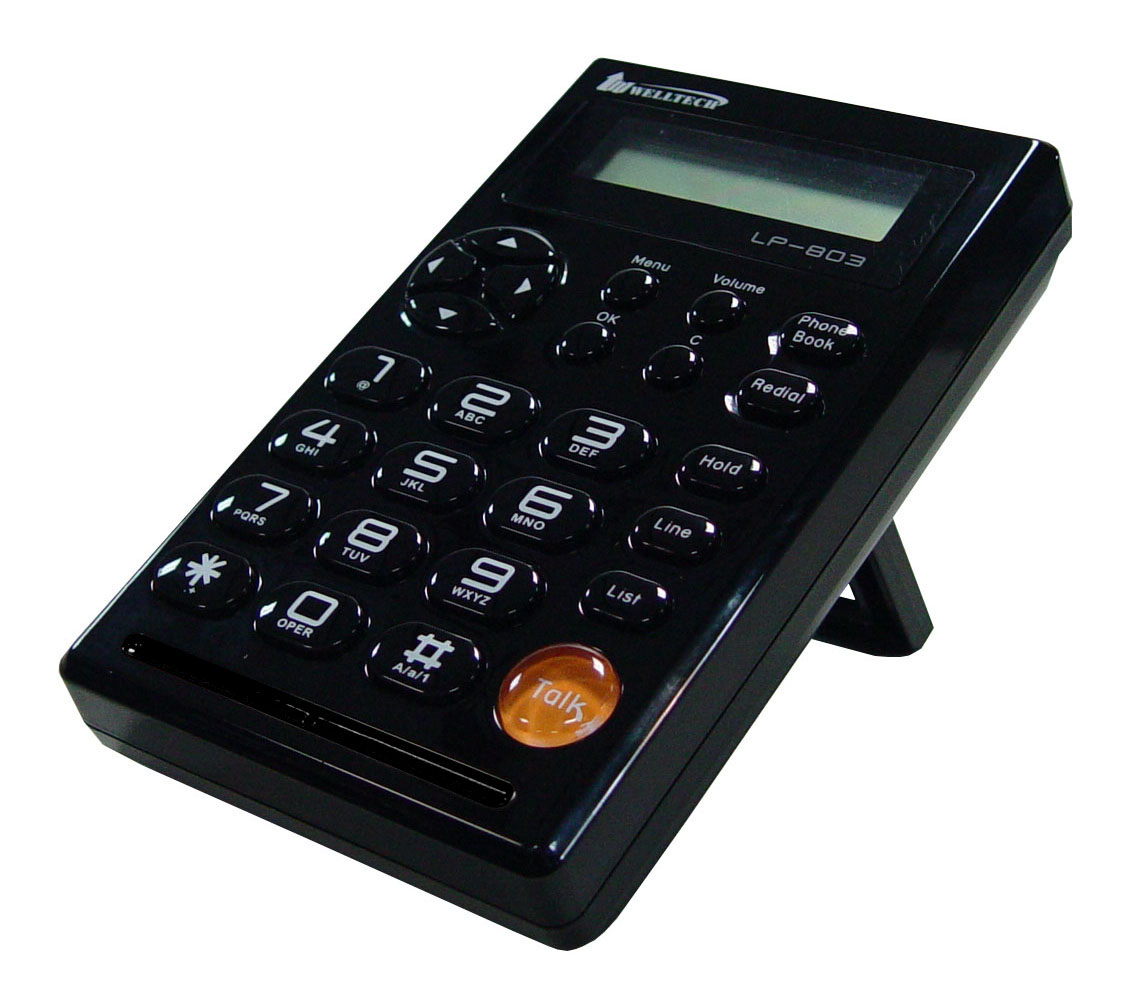

  • Color : Black and White

產品簡介
相關資訊
文件
軟體
白色產品照片 (high res)
黑色產品照片 (high res)

LP803 is a SIP IP Phone which provides portable and flexible to install anywhere such as office desktop, house wall mounted and Door Phone for visitor which connect to office IP-PBX. With excellent Loud Speaker phone, there is no need to use handset to talk over LP803. However, to keep personnel privacy talking, an external microphone and earphone jack with 3.5mm was built-in for privacy talking.

Meanwhile, LP803 is convenience for a frequent traveler with Travelling Kit to accompany your trip. Without a doubt, it is definitely a multiple features IP Phone.

Compact and Portable IP Phone

LP803 is hand held size and easy to install, carry and be flexible to carry. With excellent loud speaker phone feature, you don’t need to use traditional handset to talk. Good performance hand free phone call, let you talk easily and let your hands free during talking. If you need privacy talking, two 3.5mm speaker and earphone  jacks were built-in to support any type of earphone to talk. You can carry with you wherever you are and just plug-in to IP Network to access Internet. You can use LP308 to make or receive call just like home or office. Comfortable view angle when it was installed at desktop. Or, install at wall with your desirable place and let you talk by hand free phone.

To select freely up to 3 SIP service Accounts

LP803 is appropriate to use for VoIP Service Providers, IP Centrex service and IP-PBX within offices and remote branch offices. Up to 3 SIP Servers ( or ITSP Service provider or alternative IP-PBX ) can be configured at LP803 simultaneously. You can dial one of three accounts number directly no hassle.

Used as Door Phone

LP803 can be configured to use as an Door Phone which is connected to office IP-PBX. Visitor presses TALK button without dialing any digits and it rings to pre-configured one or several extensions in office to talk with visitor. It increases office efficiency and elevates company's image to visitor.

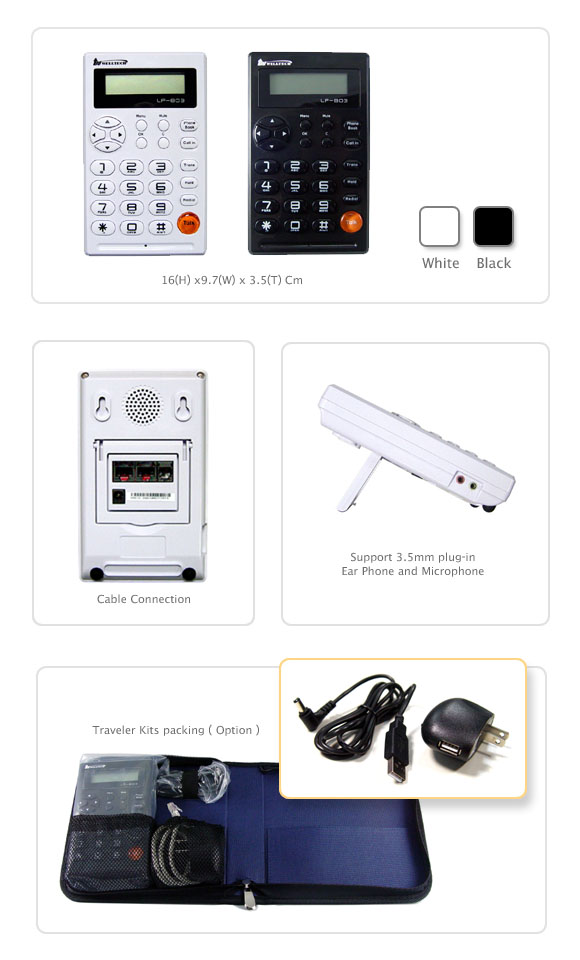

Travelling kit accompany your trip

LP803 has an option travelling bag which contains LP803, Ethernet cable, AC to DC 5V power adaptor and one power input 5V USB cable. LP803 was powered by either AC to DC5V or connect 5Vdc power cable to USB port from Notebook or PC directly. Its flexibility power sources give you carrying less accessories to travel. The dimension of travelling kit is 20.5 x 20 x 5.0 CM with Black Bag.

Provision is easier than before

Provision server software with Windows and Linux version are supported to manage, configure and firmware download remotely to LP803. It is definitely an intelligent communication gadget.

規格
  • Interface
    • Ethernet port (RJ-45, 10/100 base-T)
      • 1-WAN port, connect to IP Network
      • 1-LAN port connect to PC with NAT
      • PoE (IEEE 802.3af ) at WAN port : LP803A only
    • Earphone/Microphone Jack (3.5mm) for Headset
    • Handset Jack (RJ-9), Not Used
    • DC 5V power input Jack
    • LCD Display:
      • Display Format: 16 Characters (W) x 2 lines(H)
      • View Size: 64(W) x 17.9 (H) mm
      • LCD Type: TN
    • LCD Language Option: English
  • IP Network connection
    • IPv4 (RFC 791)
    • MAC Address (IEEE 802.3)
    • Static IP
    • DHCP Client (RFC 2131), WAN port
    • DHCP Server, LAN port
    • PPPoE
    • DDNS
    • DMZ
    • VLAN
    • Virtual Server (DHCP Server IP range)
    • DNS Client
    • PPTP VPN Client mode
    • SNTP Server
    • TCP/UDP (RFC 793/768)
    • RTP/RTCP (RFC 1889/1890)
    • IPV4 ICMP (RFC 792)
    • TFTP Client
    • QoS Support
  • SIP Protocol
    • RFC3261 compliance
    • Support up-to 3 SIP Register Accounts
    • Support Primary and Backup SIP Proxy
    • SIP UDP Protocol
    • Support SIP compact Form
    • SIP Session Timer (RFC 4028)
    • MD5 Digest Authentication
    • Message Waiting Indication (RFC3842)
    • Event Notification (RFC3265)
    • REFER (RFC3515)
    • Support DNS SRV to locate SIP Server (RFC 3263)
    • Support STUN NAT Traversal
    • Support “rport” parameter (RFC 3581)
  • Audio Codec
    • G.711 A-law/μ-law, G.723.1 (6.3K/5.3K)
    • G.729A, GSM, G.726
    • Silence Suppression
    • VAD/CNG
    • Automatic Gain Control
    • In-band/out of band DTMF (RFC 4733 (RFC 2833)/SIP INFO)
    • Adaptive/Configurable Jitter Buffer
    • Acoustic Echo Cancellation
    • Volume Adjustment
    • Speed Dial
    • Phone Book
    • Clock, Call-Duration display
    • Call History of Missed, Received and Dialed
    • Dialing Plan with drop, replace, Insert dialing digits
    • Selectable Call Progress Tone
    • Support Personal Melody Ring
    • Auto Answer Mode
    • Support Specified Line Calling
  • Call Features
    • Caller ID display
    • Voice Mail with Indication
    • Speed Dialing
    • Call Waiting/Switching between Calls
    • Call Forward (Busy, Unconditional, No Answer)
    • Do not disturb
    • Call Hold
    • Call Mute
    • Call Transfer
    • Alarm Ring
    • 3-way conference call
    • Music-on-hold support (via IPPBX or local)
    • Redialing/pre-dialing
    • Hot Line ( for Door Phone application )
    • Support Peer to Peer Dialing
  • MANAGEMENT
    • SNTP with time zone
    • Multilanguage Web User Interface
    • Administrative Telnet CLI
    • 2 Levels of User Access Right with Password protection
    • LCD Administration Login
    • Provides System Status
    • Diagnostics (debug through syslog)
    • Configuration Backup/Restore
    • Reset to Default
    • Support provision through MAC address
  • Environmental
    • Dimension: 16(H) × 9.7(W) × 3.5(T) CM
    • Weight: 0.45kg (One unit with packing)
    • Operating Temp. & Humidity
      • Temp.: 0°C~45°C (32°F~113°F)
      • Humidity: 10%~90% relative humidity, non-condensing
    • Power Adaptor:
      • INPUT: AC100V~240V, 50/60Hz
      • OUTPUT: DC 5V,
    • Power Consumption of PoE : 3.5 Watts
  • Approvals
    • CE, FCC, LVD and RoHS
  • Country of origin
    • Made in Taiwan
  • Packing Accessories ( regular )
    • LP803 IP Phone x 1 pcs
    • AC to DC5V Power adaptor x 1 pcs
    • 1 meter Ethernet cable x 1 pcs
    • 5V USB to DC 5V power cable x 1 pcs
    • CD User Manual
  • Traveler Kits packing ( Option )
    • Travelling bag x 1 pcs
    • LP803 IP Phone x 1 pcs
    • AC to DC5V Power adaptor x 1 pcs
    • 1 meter Ethernet cable x 1 pcs
    • 5V USB to DC 5V power cable x 1 pcs
    • CD User Manual
  • Warranty
    • One year

Ordering Information
  LP803 LP803A Travelling Kit
PoE NO YES
LCD Language English English
Headset,
Ear Phone Microphone,
Hand-Free interface		 YES YES
Wall Mount YES YES
Desk top YES YES
Delivery Status NOW NOW NOW
Option Order     YES
